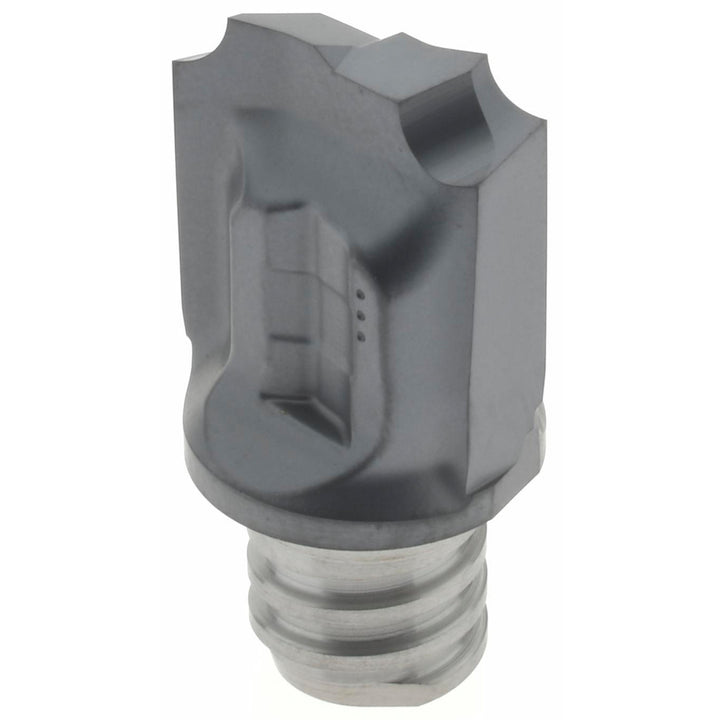

Carbide Insert, Grade IC908, TiAlN - Iscar 5604023

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604023

MFR# 5604023Series MM HR

$76.68List $98.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604023 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0630
Cutting diameter0.2680
Cutting width0.268
Extension from holder in0.4920
Functional length0.4920
Included angle degree90
Insert handRight Hand
Insert size1.6/063-6.8
Lead angle90
Length of cut0.3740
Manufacturers catalog number5604023
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3740
Milling tip full descriptionMM HR1.6/063-6.8-2T06
Milling tip styleMM HR
Milling tip typeCorner Rounding
Number of flutes2
Overall length0.492
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
