Iscar

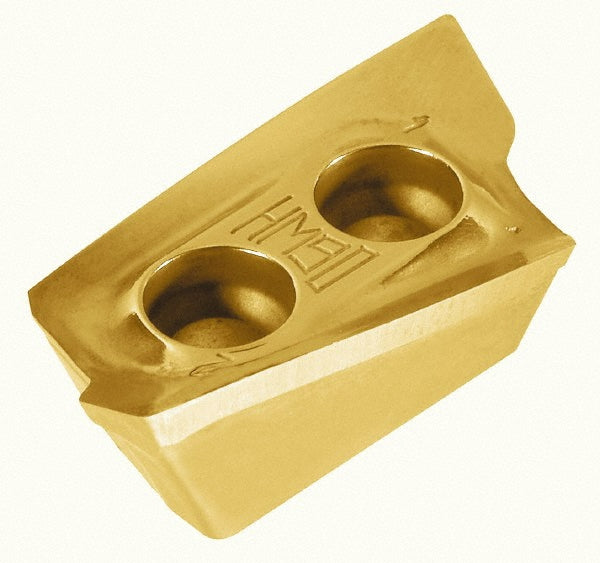

HP ADCT 2207PDR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604053
MFR# 5604053ISO/ANSI# HP ADCT 2207PDRCat# HP ADCT 2207PDR IC328Series HELIPLUS
$41.24List $51.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5604053 is a HP ADCT 2207PDR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHP ADCT 2207PDR IC328
Chip breakerPDR
Coating finishTiCN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHM90-15
Cutting edge effective length0.8900
Cutting edge styleHoned
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code2207
Insert styleADCT
Iso codeHP ADCT 2207PDR
Length1.0130
Length range1.0000+
Manufacturers catalog numberHP ADCT 2207PDR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.8900
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2950
Thickness range0.2500 to 0.3500
Width0.1010
