Iscar

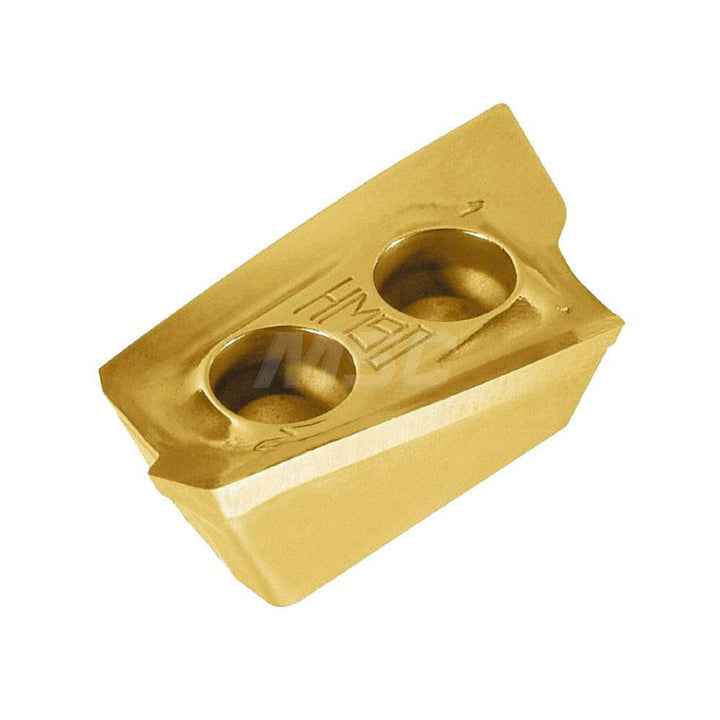

HP ADCT 2207PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604055
MFR# 5604055ISO/ANSI# HP ADCT 2207PDRCat# HP ADCT 2207PDR IC908Series HELIPLUS
$40.52List $51.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604055 is a HP ADCT 2207PDR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHP ADCT 2207PDR IC908
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHM90-15
Cutting edge effective length0.8900
Cutting edge styleHoned
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code2207
Insert styleADCT
Iso codeHP ADCT 2207PDR
Length1.0130
Length range1.0000+
Manufacturers catalog numberHP ADCT 2207PDR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.8900
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2950
Thickness range0.2500 to 0.3500
Width0.1010
