Iscar

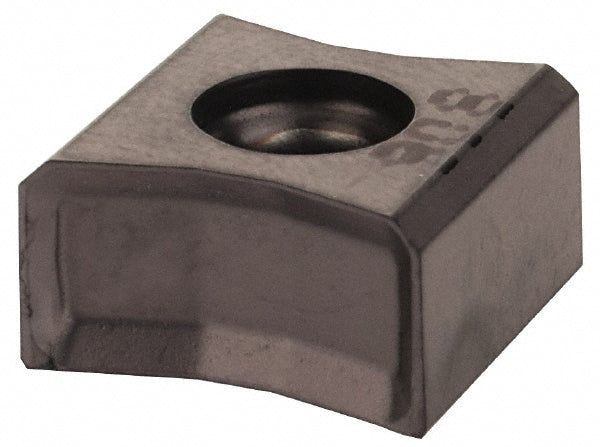

LNAT 1106PN-W Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604084
MFR# 5604084ISO/ANSI# LNAT 1106PN-WCat# LNAT 1106PN-W IC908Series TANGMILL
$29.52List $37.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604084 is a LNAT 1106PN-W solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeLNAT 1106PN-W IC908
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF90LN
Cutting edge effective length0.4480
Cutting edge styleWiper
Included angle degree90
Inscribed circle0.2350
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNAT
Iso codeLNAT 1106PN-W
Length0.4480
Length range0.4000 to 0.4500
Manufacturers catalog numberLNAT 1106PN-W IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4480
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4310
Thickness range0.3500 to 0.5000
Width0.2350
