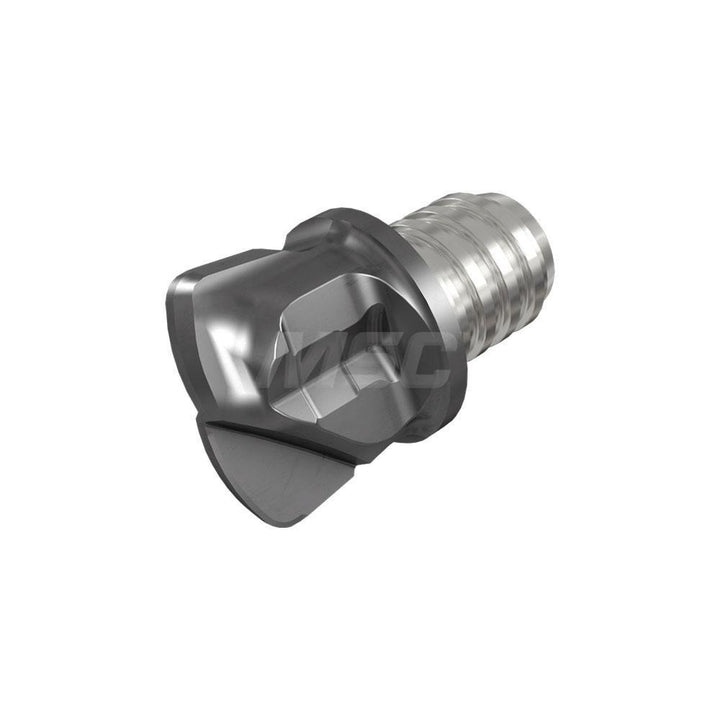

Carbide Insert, Grade IC908, TiAlN - Iscar 5604089

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604089

MFR# 5604089Series MM FF

$89.80List $115.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604089 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius2.0000
Cutting diameter0.4728
Cutting width0.4728in
Extension from holder in0.4370
Functional length0.4373
Included angle degree85
Insert handRight Hand
Insert size120R2.0
Lead angle97
Length of cut0.0268in
Manufacturers catalog number5604089
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.0268
Milling tip full descriptionMM FF120R2.0-2T08
Milling tip styleMM FF
Milling tip typeHigh Feed
Number of flutes2
Overall length in7/16in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
