Iscar

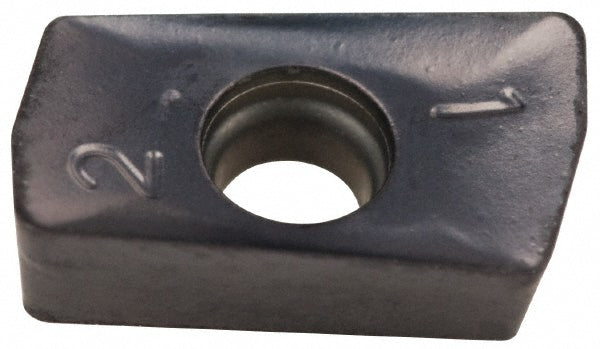

HP ANKT 0702 PN-R Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604091
MFR# 5604091ISO/ANSI# HP ANKT 0702 PN-RCat# HP ANKT 0702 PN-R IC928Series HELIPLUS
$17.10List $21.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604091 is a HP ANKT 0702 PN-R solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHP ANKT 0702 PN-R IC928
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHP ANK-07; HP.90-07
Cutting edge effective length0.3030
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code0702
Insert styleANKT
Iso codeHP ANKT 0702 PN-R
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANKT 0702 PN-R IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
