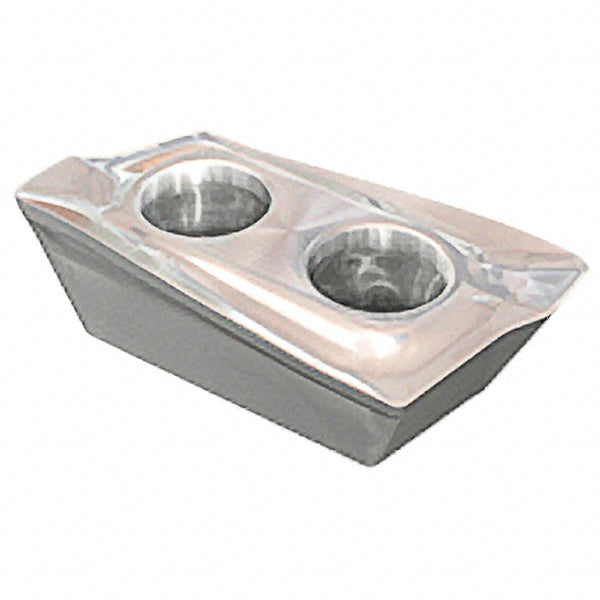

HP ADKT 190610PDTR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604092

MFR# 5604092ISO/ANSI# HP ADKT 190610PDTRCat# HP ADKT 190610PDTR IC928Series HELIPLUS

$25.46List $32.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604092 is a HP ADKT 190610PDTR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHP ADKT 190610PDTR IC928
Chip breakerPDTR
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHP .90-19
Cutting edge effective length0.7130
Cutting edge styleT-Land
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size19
Insert size code190610
Insert styleADKT
Iso codeHP ADKT 190610PDTR
Length0.8580
Length range0.7000 to 0.9000
Manufacturers catalog numberHP ADKT 190610PDTR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.7130
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2700
Thickness range0.2500 to 0.3500
