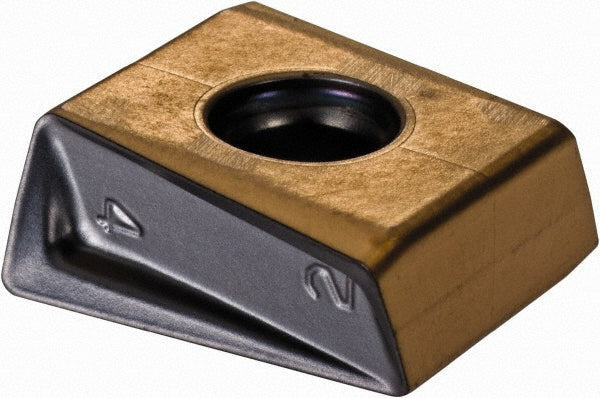

T490 LNMT 1607PN-R Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5604098

MFR# 5604098ISO/ANSI# T490 LNMT 1607PN-RCat# T490 LNMT 1607PN-R IC830Series HELITANG

$30.70List $39.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5604098 is a T490 LNMT 1607PN-R solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT490 LNMT 1607PN-R IC830
Chip breakerR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT490 LNK16
Cutting edge effective length0.6713
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size16
Insert size code1607
Insert styleLNMT
Iso codeT490 LNMT 1607PN-R
Length0.6713
Length range0.6500 to 0.7000
Manufacturers catalog numberT490 LNMT 1607PN-R IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.6230
Thickness range0.5000+
Width0.2760
