Iscar

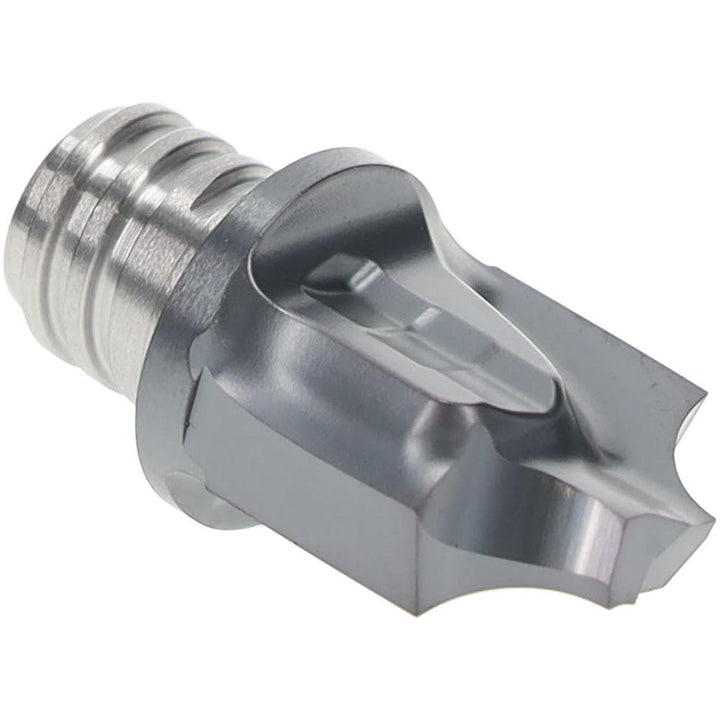

Carbide Insert, Grade IC908, TiAlN - Iscar 5604101
MFR# 5604101Series MM HR
$97.43List $122.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5604101 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1560
Cutting diameter0.1850
Cutting width0.1850in
Extension from holder in0.6140
Functional length0.6140
Included angle degree90
Insert handRight Hand
Insert size4.0/156-4.7
Lead angle90
Length of cut0.4720in
Manufacturers catalog number5604101
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4720
Milling tip full descriptionMM HR4.0/156-4.7-2T08
Milling tip styleMM HR
Milling tip typeCorner Rounding
Number of flutes2
Overall length0.6140in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
