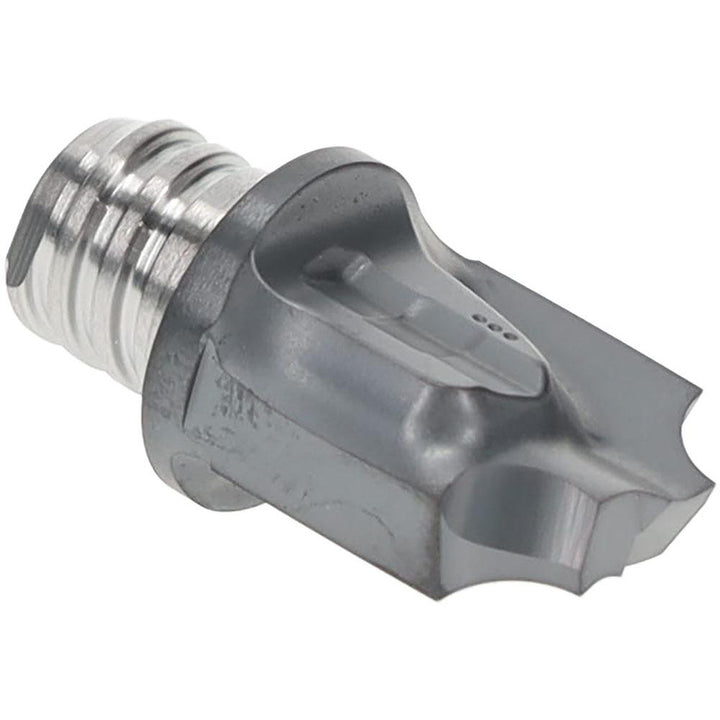

Carbide Insert, Grade IC908, TiAlN - Iscar 5604102

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604102

MFR# 5604102Series MM HR

$95.73List $122.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604102 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1250
Cutting diameter0.2560
Cutting width0.2560in
Extension from holder in0.4920
Functional length0.6140
Included angle degree90
Insert handRight Hand
Insert size3.0/125-6.5
Lead angle90
Length of cut0.4720in
Manufacturers catalog number5604102
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4720
Milling tip full descriptionMM HR3.0/125-6.5-2T08
Milling tip styleMM HR
Milling tip typeCorner Rounding
Number of flutes2
Overall length0.6140in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
