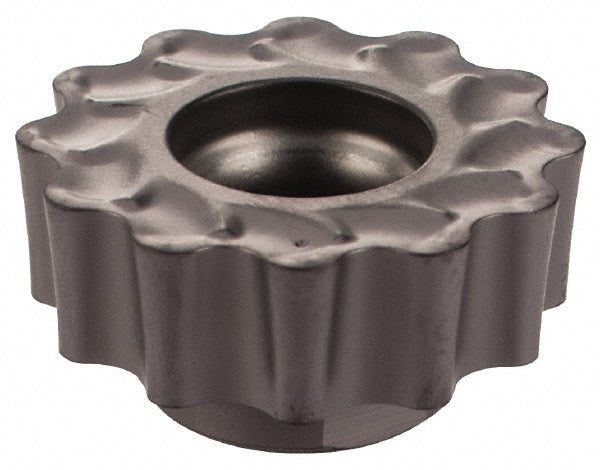

RCMT 1607-FW Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604132
MFR# 5604132ISO/ANSI# RCMT 1607-FWCat# RCMT 1607-FW IC908Series MILLSHRED
$23.97List $30.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604132 is a RCMT 1607-FW solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeRCMT 1607-FW IC908
Chip breakerFW
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityFRW
Cutting edge effective length0.6299
Cutting edge styleSegmented
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1607
Insert styleRCMT
Iso codeRCMT 1607-FW
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCMT 1607-FW IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.6299
