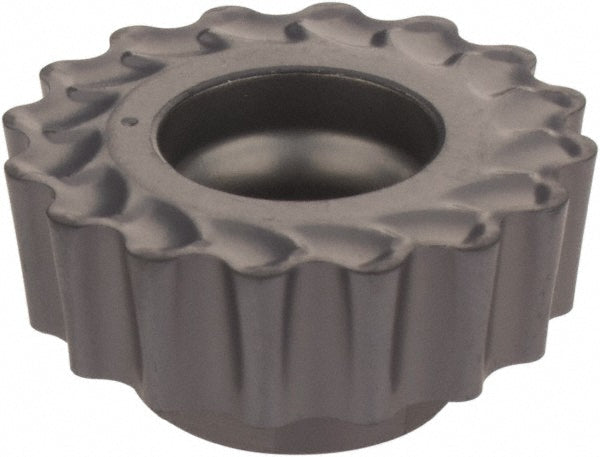

RCMT 2009-FW Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604133

Iscar

RCMT 2009-FW Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604133

MFR# 5604133ISO/ANSI# RCMT 2009-FWCat# RCMT 2009-FW IC928Series MILLSHRED

$27.64List $35.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604133 is a RCMT 2009-FW solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRCMT 2009-FW IC928
Chip breakerFW
Coating finishTiAlN
Coating processPVD
Corner radius0.3937
Cutter series compatibilityFRW
Cutting edge effective length0.7874
Cutting edge styleSegmented
Included angle degree360
Inscribed circle0.7874
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size20
Insert size code2009
Insert styleRCMT
Iso codeRCMT 2009-FW
Length0.7874
Length range0.7000 to 0.9000
Manufacturers catalog numberRCMT 2009-FW IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7874
