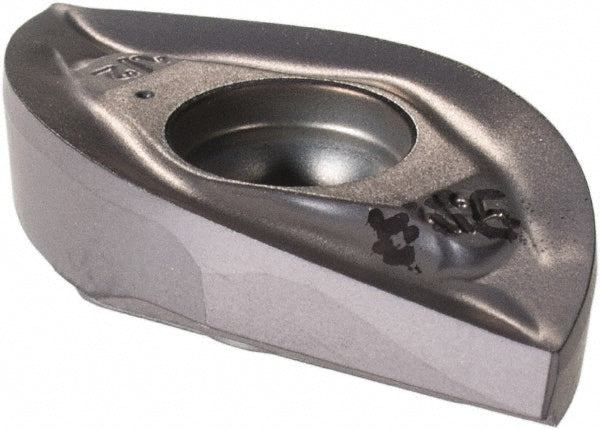

BCR D1.00-QT Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604221
MFR# 5604221ISO/ANSI# BCR D1.00-QTCat# BCR D1.00-QT IC908Series DROPMILL
$57.78List $74.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604221 is a BCR D1.00-QT solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeBCR D1.00-QT IC908
Chip breakerQT
Coating finishTiAlN
Coating processPVD
Corner radius in1/2
Cutter series compatibilityBCM
Cutting edge effective length0.8700
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4700
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size1.00
Insert size code1.00
Insert styleBCR
Iso codeBCR D1.00-QT
Length0.8700
Length range0.7000 to 0.9000
Manufacturers catalog numberBCR D1.00-QT IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.8700
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1700
Thickness range0.1500 to 0.1750
Width0.4700
