Iscar

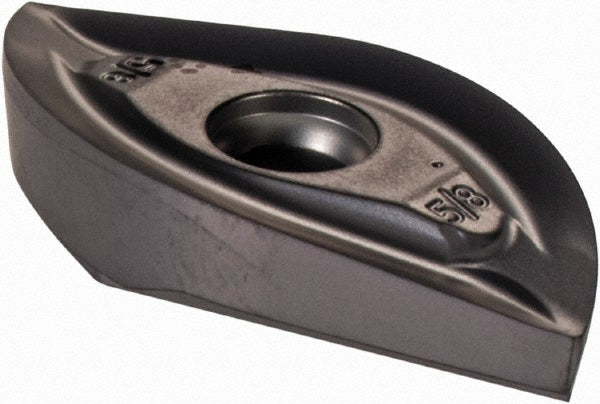

BCR D1.25-QT Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604222
MFR# 5604222ISO/ANSI# BCR D1.25-QTCat# BCR D1.25-QT IC908Series DROPMILL
$72.15List $92.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC19/32
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604222 is a BCR D1.25-QT solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeBCR D1.25-QT IC908
Chip breakerQT
Coating finishTiAlN
Coating processPVD
Corner radius in5/8
Cutter series compatibilityBCM
Cutting edge effective length1.1090
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in19/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size1.25
Insert size code1.25
Insert styleBCR
Iso codeBCR D1.25-QT
Length in1-7/64
Length range1.0000+
Manufacturers catalog numberBCR D1.25-QT IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut1.1090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2100
Thickness range0.2000 to 0.2200
Width in19/32
