Iscar

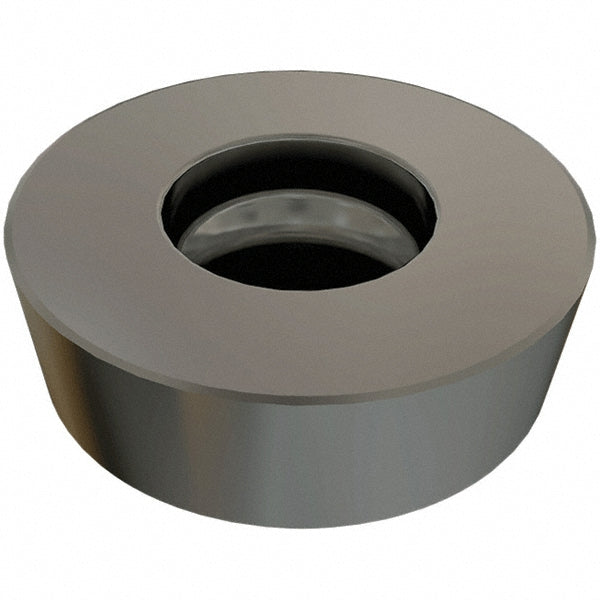

RCMW 1607MO Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604231
MFR# 5604231ISO/ANSI# RCMW 1607MOCat# RCMW 1607MO IC908Series MILLSHRED
$20.34List $25.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604231 is a RCMW 1607MO solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeRCMW 1607MO IC908
Chip breakerMO
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityFRW
Cutting edge effective length0.6299
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1607
Insert styleRCMW
Iso codeRCMW 1607MO
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCMW 1607MO IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.6299
