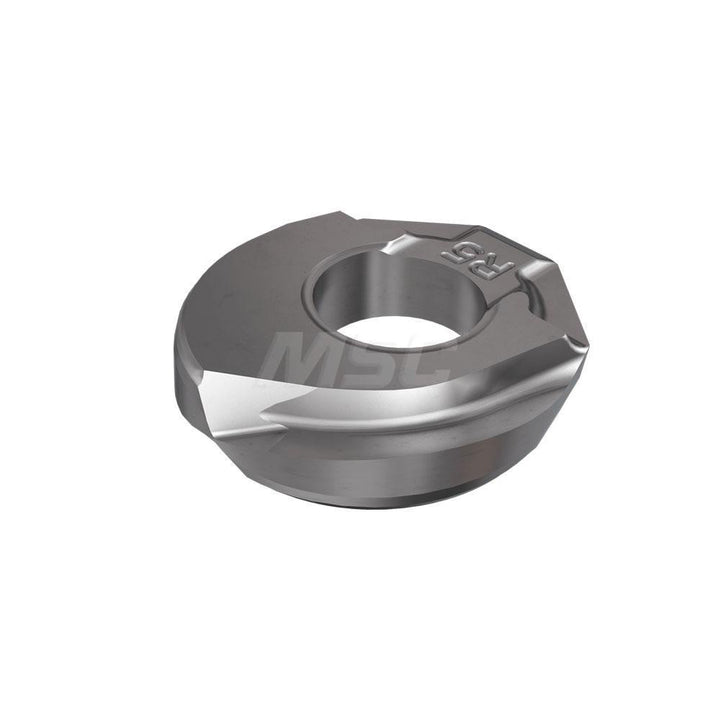

HBR D120-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604245

Iscar

HBR D120-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604245

MFR# 5604245ISO/ANSI# HBR D120-QFCat# HBR D120-QF IC908Series BALLPLUS

$36.54List $46.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604245 is a HBR D120-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHBR D120-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityHCM
Cutting edge effective length0.3150
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size120
Insert size code120
Insert styleHBR
Iso codeHBR D120-QF
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberHBR D120-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1024
Thickness range0.1000 to 0.1250
Width0.4724
