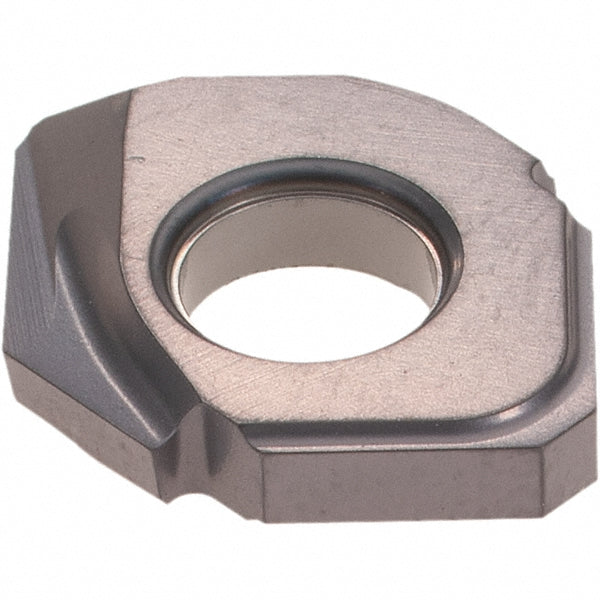

HCD D124-090-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604253
MFR# 5604253ISO/ANSI# HCD D124-090-QFCat# HCD D124-090-QF IC908Series BALLPLUS
$51.89List $65.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604253 is a HCD D124-090-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHCD D124-090-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHCM
Cutting edge effective length0.2010
Cutting edge styleHoned
Included angle degree45
Inscribed circle0.4880
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size124
Insert size code124-090
Insert styleHCD
Iso codeHCD D124-090-QF
Length0.3580
Length range0.3200 to 0.4000
Manufacturers catalog numberHCD D124-090-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2010
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.4880
