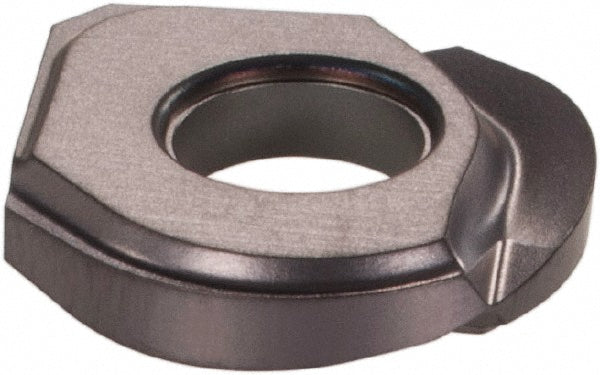

HCR D.50-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604283

Iscar

HCR D.50-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604283

MFR# 5604283ISO/ANSI# HCR D.50-QFCat# HCR D.50-QF IC908Series BALLPLUS

$41.86List $53.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604283 is a HCR D.50-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHCR D.50-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityHCM
Cutting edge effective length0.3820
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.50
Insert size code0.50
Insert styleHCR
Iso codeHCR D.50-QF
Length0.3820
Length range0.3200 to 0.4000
Manufacturers catalog numberHCR D.50-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3820
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width in1/2
