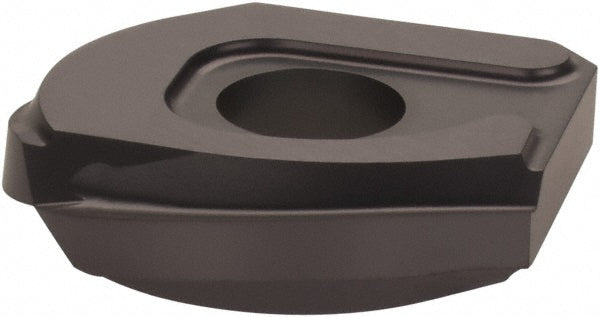

HBR D.62-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604297

Iscar

HBR D.62-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604297

MFR# 5604297ISO/ANSI# HBR D.62-QFCat# HBR D.62-QF IC908Series BALLPLUS

$46.53List $59.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604297 is a HBR D.62-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHBR D.62-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius0.3120
Cutter series compatibilityHCM
Cutting edge effective length0.4200
Cutting edge styleHoned
Included angle degree360
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.62
Insert size code0.62
Insert styleHBR
Iso codeHBR D.62-QF
Length0.4200
Length range0.4000 to 0.4500
Manufacturers catalog numberHBR D.62-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4200
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1330
Thickness range0.1250 to 0.1500
Width in5/8
