Iscar

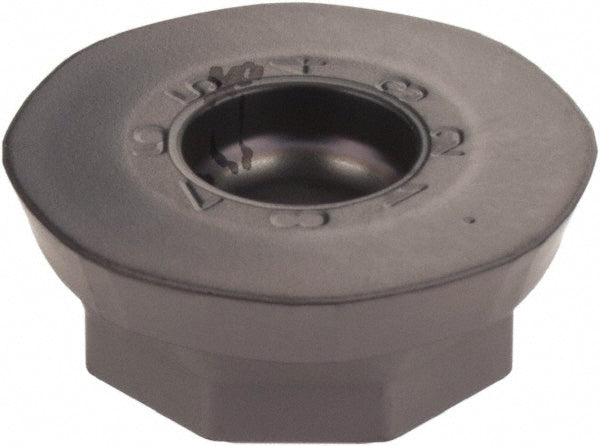

OFMW 0706R10-FF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604301
MFR# 5604301ISO/ANSI# OFMW 0706R10-FFCat# OFMW 0706R10-FF IC908Series HELIOCTO
$30.69List $39.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604301 is a OFMW 0706R10-FF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeOFMW 0706R10-FF IC908
Chip breakerFF
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHOF-07
Cutting edge effective length0.2760
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.8031
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code0706
Insert styleOFMW
Iso codeOFMW 0706R10-FF
Length0.8031
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMW 0706R10-FF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0870
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle23
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.3150
Thickness range0.2500 to 0.3500
Width0.8031
