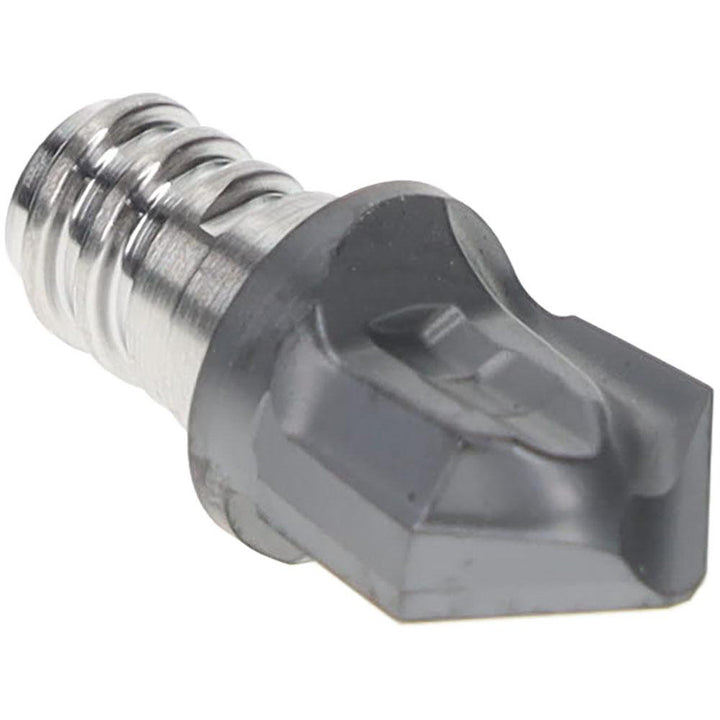

Carbide Insert, Grade IC908, TiAlN - Iscar 5604307

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604307

MFR# 5604307Series MM HCD

$55.52List $71.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604307 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.0394
Cutting width0.0394in
Extension from holder in0.3840
Functional length0.3842
Included angle degree140
Insert handRight Hand
Insert size080-090
Lead angle90
Length of cut0.2758in
Manufacturers catalog number5604307
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1241
Milling tip full descriptionMM HCD080-090-2T05
Milling tip styleMM HCD
Milling tip typeChamfer
Number of flutes2
Overall length0.3842in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
