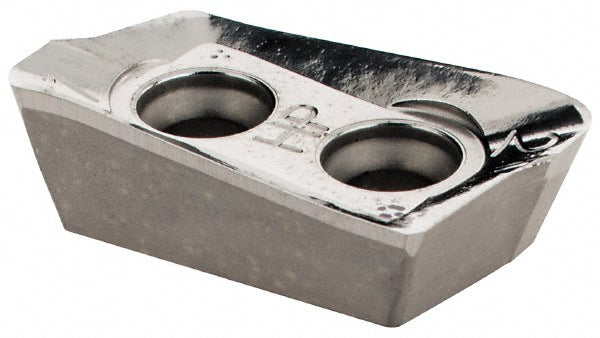

HP ADCR 220720PDFR-P LM Solid Carbide Insert, Grade IC28 - Iscar 5604316
MFR# 5604316ISO/ANSI# HP ADCR 220720PDFR-P LMCat# HP ADCR 220720PDFR-P LM IC28Series HELIPLUS
$56.61List $72.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5604316 is a HP ADCR 220720PDFR-P LM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeHP ADCR 220720PDFR-P LM IC28
Chip breakerPLM
Coating processUncoated
Corner radius0.0787
Cutter series compatibilityHP .90-22
Cutting edge effective length0.8660
Cutting edge styleSharp
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220720
Insert styleADCR
Iso codeHP ADCR 220720PDFR-P LM
Length1.0200
Length range1.0000+
Manufacturers catalog numberHP ADCR 220720PDFR-P LM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.8660
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle27
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2910
Thickness range0.2500 to 0.3500
