Iscar

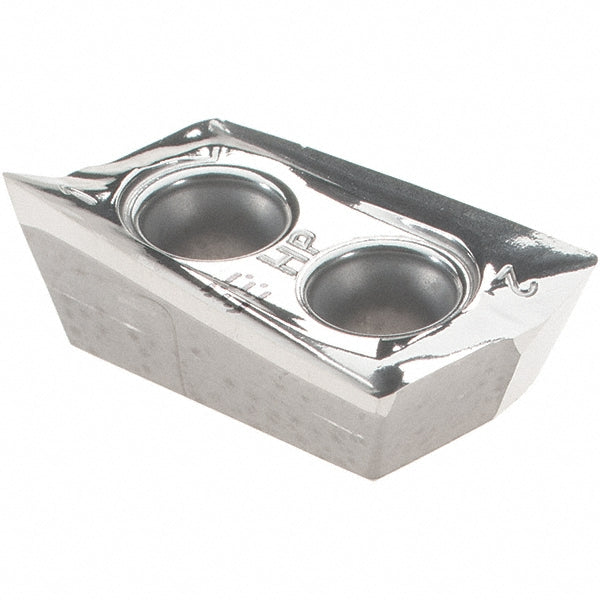

HP ADCR 190604PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5604318
MFR# 5604318ISO/ANSI# HP ADCR 190604PDFR-PCat# HP ADCR 190604PDFR-P IC28Series HELIPLUS
$32.25List $41.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5604318 is a HP ADCR 190604PDFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeHP ADCR 190604PDFR-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityHP .90-19
Cutting edge effective length0.7680
Cutting edge styleSharp
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size19
Insert size code190604
Insert styleADCR
Iso codeHP ADCR 190604PDFR-P
Length0.8860
Length range0.7000 to 0.9000
Manufacturers catalog numberHP ADCR 190604PDFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.7680
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle27
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2910
Thickness range0.2500 to 0.3500
