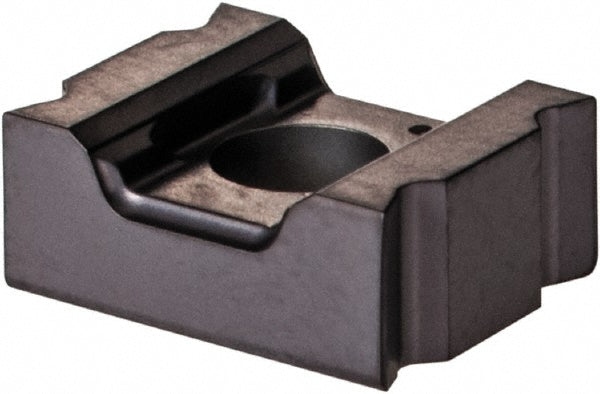

LNET 083504-TN-N Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604325
MFR# 5604325ISO/ANSI# LNET 083504-TN-NCat# LNET 083504-TN-N IC928Series TANGSLOT
$24.24List $30.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604325 is a LNET 083504-TN-N solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNET 083504-TN-N IC928
Chip breakerTN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityETS-LN08; FDN-LN08
Cutting edge effective length0.3310
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code083504
Insert styleLNET
Iso codeLNET 083504-TN-N
Length0.3310
Length range0.3200 to 0.4000
Manufacturers catalog numberLNET 083504-TN-N IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3310
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2700
Thickness range0.2500 to 0.3500
Width0.3310
