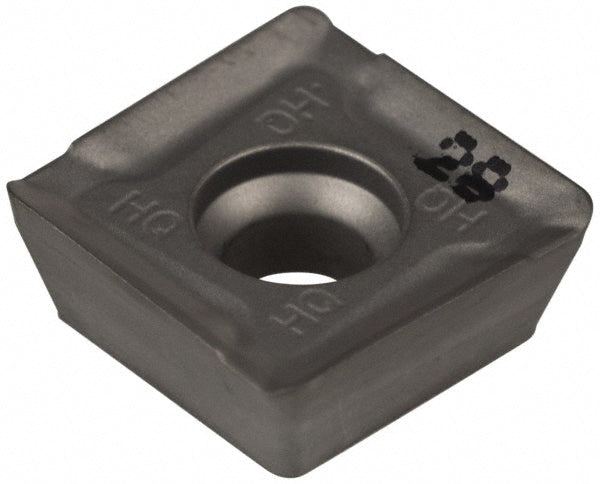

SDMR 1205PDR-HQ-M Solid Carbide Insert, Grade IC28 - Iscar 5604338

Iscar

SDMR 1205PDR-HQ-M Solid Carbide Insert, Grade IC28 - Iscar 5604338

MFR# 5604338ISO/ANSI# SDMR 1205PDR-HQ-MCat# SDMR 1205PDR-HQ-M IC28Series HELIQUAD

$16.32List $20.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5604338 is a SDMR 1205PDR-HQ-M solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeSDMR 1205PDR-HQ-M IC28
Chip breakerHQ
Coating processUncoated
Corner radius0.0394
Cutter series compatibilitySDK; F90SD-12
Cutting edge effective length0.4606
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSDMR
Iso codeSDMR 1205PDR-HQ-M
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDMR 1205PDR-HQ-M IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2010
Thickness range0.2000 to 0.2200
Width in1/2
