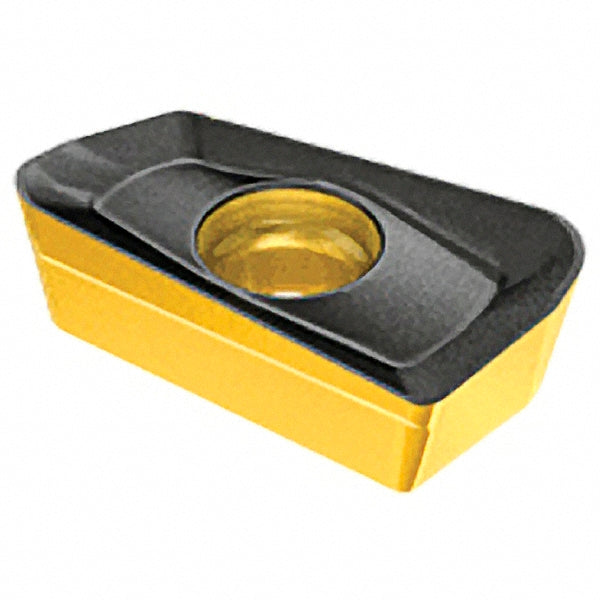

HP ANCT 070204PN-R Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604343

Iscar

HP ANCT 070204PN-R Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604343

MFR# 5604343ISO/ANSI# HP ANCT 070204PN-RCat# HP ANCT 070204PN-R IC928Series HELIPLUS

$21.31List $27.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604343 is a HP ANCT 070204PN-R solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHP ANCT 070204PN-R IC928
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHP-ANK-07; HP .90-07
Cutting edge effective length0.3030
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070204
Insert styleANCT
Iso codeHP ANCT 070204PN-R
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANCT 070204PN-R IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle32
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
