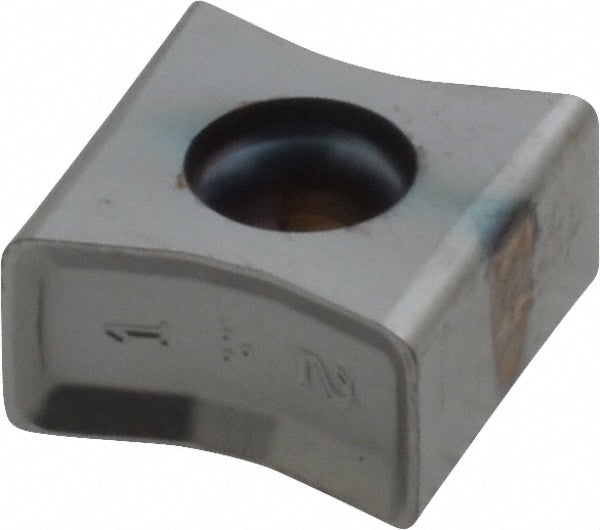

LNMT 1106PN-N MM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604369

Iscar

LNMT 1106PN-N MM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604369

MFR# 5604369ISO/ANSI# LNMT 1106PN-N MMCat# LNMT 1106PN-N MM IC328Series TANGMILL

$21.87List $28.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5604369 is a LNMT 1106PN-N MM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNMT 1106PN-N MM IC328
Chip breakerMM
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; SSB; F86; F90
Cutting edge effective length0.4394
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNMT
Iso codeLNMT 1106PN-N MM
Length0.4394
Length range0.4000 to 0.4500
Manufacturers catalog numberLNMT 1106PN-N MM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4330
Thickness range0.3500 to 0.5000
Width0.2360
