Iscar

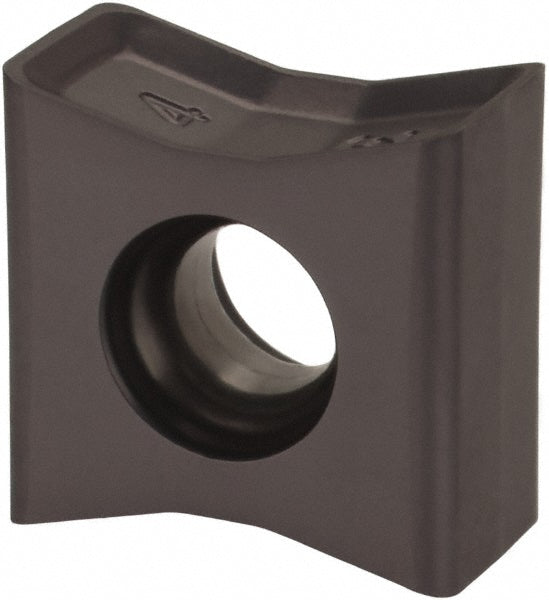

LNMT 1106PN-N MM Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604370
MFR# 5604370ISO/ANSI# LNMT 1106PN-N MMCat# LNMT 1106PN-N MM IC908Series TANGMILL
$21.87List $28.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604370 is a LNMT 1106PN-N MM solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeLNMT 1106PN-N MM IC908
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; SSB; F86; F90
Cutting edge effective length0.4394
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNMT
Iso codeLNMT 1106PN-N MM
Length0.4394
Length range0.4000 to 0.4500
Manufacturers catalog numberLNMT 1106PN-N MM IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4330
Thickness range0.3500 to 0.5000
Width0.2360
