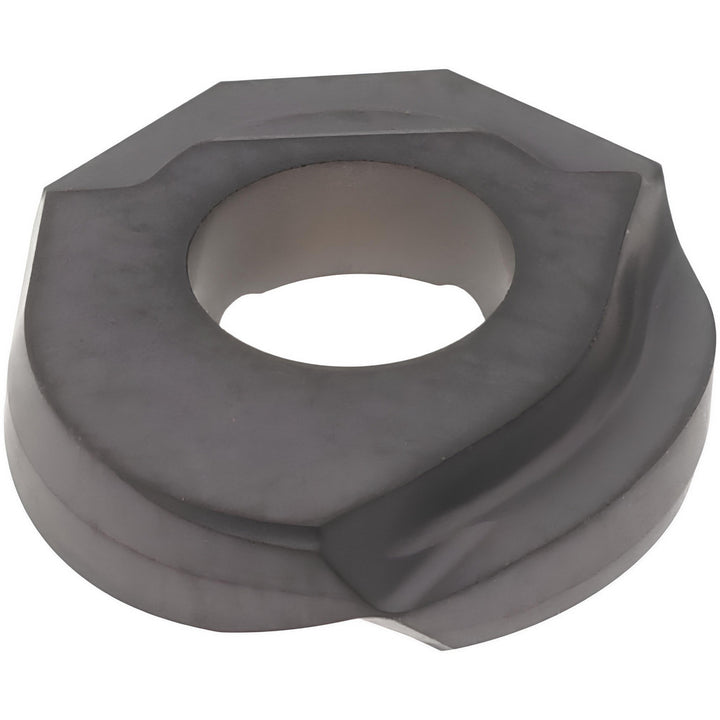

HBR D.38-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604413

Iscar

HBR D.38-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604413

MFR# 5604413ISO/ANSI# HBR D.38-QFCat# HBR D.38-QF IC908Series BALLPLUS

$39.74List $50.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604413 is a HBR D.38-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHBR D.38-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius0.1900
Cutter series compatibilityHCM
Cutting edge effective length0.2600
Cutting edge styleHoned
Included angle degree360
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.38
Insert size code0.38
Insert styleHBR
Iso codeHBR D.38-QF
Length0.2600
Length range0.0000 to 0.3200
Manufacturers catalog numberHBR D.38-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2600
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.0900
Thickness range0.0000 to 0.1000
Width in3/8
