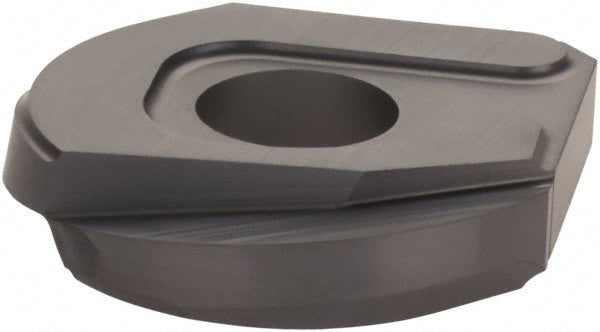

HBF D1.0-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604418

Iscar

HBF D1.0-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604418

MFR# 5604418ISO/ANSI# HBF D1.0-QFCat# HBF D1.0-QF IC908Series BALLPLUS

$89.80List $115.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604418 is a HBF D1.0-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHBF D1.0-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius in1/2
Cutter series compatibilityHCM
Cutting edge effective length0.6700
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1
Inscribed circle range1.0000+
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size1.00
Insert size code1.00
Insert styleHBF
Iso codeHBF D1.0-QF
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberHBF D1.0-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.6700
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2120
Thickness range0.2000 to 0.2200
Width in1
