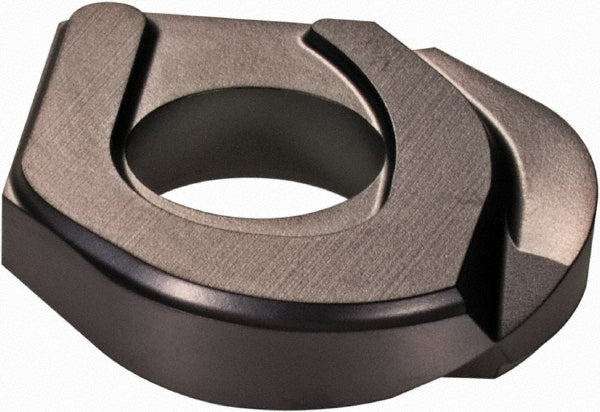

HCR D.75-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604421

Iscar

HCR D.75-QF Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604421

MFR# 5604421ISO/ANSI# HCR D.75-QFCat# HCR D.75-QF IC908Series BALLPLUS

$53.64List $68.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604421 is a HCR D.75-QF solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHCR D.75-QF IC908
Chip breakerQF
Coating finishTiAlN
Coating processPVD
Corner radius in3/8
Cutter series compatibilityHCM
Cutting edge effective length0.5790
Cutting edge styleHoned
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.75
Insert size code0.75
Insert styleHCR
Iso codeHCR D.75-QF
Length0.5790
Length range0.5000 to 0.6000
Manufacturers catalog numberHCR D.75-QF IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.5790
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1830
Thickness range0.1750 to 0.1850
Width in3/4
