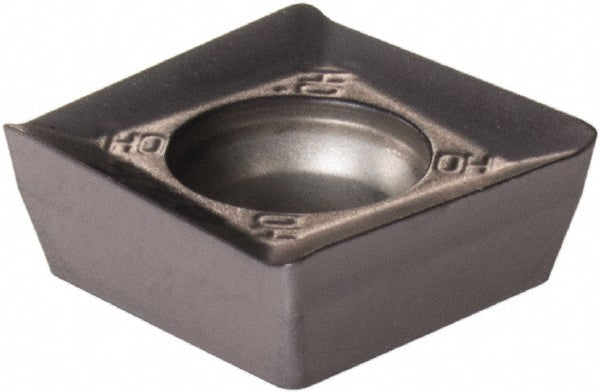

SPMT 100404R-HQ-M Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604459
MFR# 5604459ISO/ANSI# SPMT 100404R-HQ-MCat# SPMT 100404R-HQ-M IC928Series HELIQUAD
$18.52List $23.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604459 is a SPMT 100404R-HQ-M solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSPMT 100404R-HQ-M IC928
Chip breakerHQ
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityFSB; SSB; SPK; F90SP; E90SP
Cutting edge effective length0.3859
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100404
Insert styleSPMT
Iso codeSPMT 100404R-HQ-M
Length0.4016
Length range0.4000 to 0.4500
Manufacturers catalog numberSPMT 100404R-HQ-M IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle23
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1670
Thickness range0.1500 to 0.1750
Width0.4016
