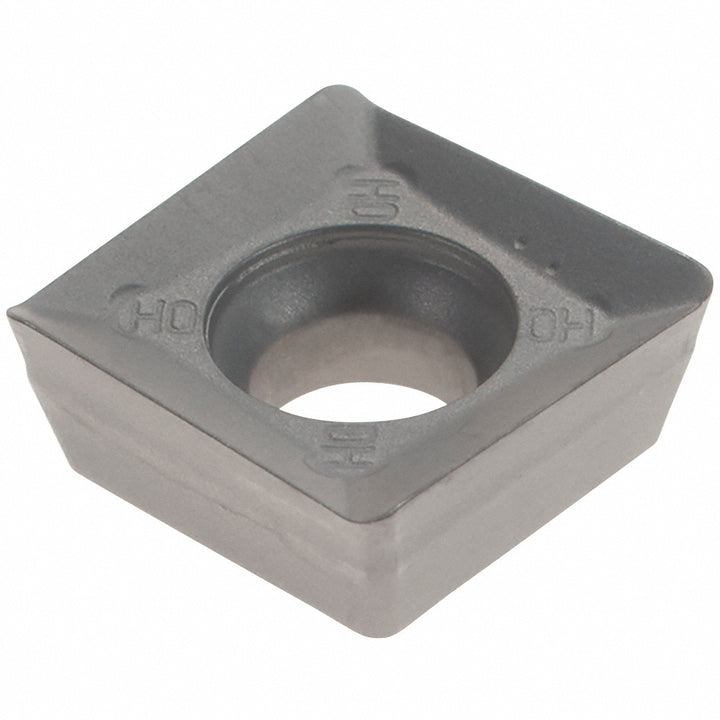

SPMT 100408R-HQ-M Cermet Insert, Grade IC30N - Iscar 5604461

Iscar

SPMT 100408R-HQ-M Cermet Insert, Grade IC30N - Iscar 5604461

MFR# 5604461ISO/ANSI# SPMT 100408R-HQ-MCat# SPMT 100408R-HQ-M IC30NSeries HELIQUAD

$15.77List $20.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC30N
MaterialCermet

Description

The Iscar 5604461 is a SPMT 100408R-HQ-M cermet indexable insert, grade IC30N. Suited for steel, stainless steel, hard material.

Specifications

Ansi codeSPMT 100408R-HQ-M IC30N
Chip breakerHQ
Coating processUncoated
Corner radius0.0236
Cutter series compatibilityFSB; SSB; SPK; F90SP; E90SP
Cutting edge effective length0.3780
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleSPMT
Iso codeSPMT 100408R-HQ-M
Length0.4016
Length range0.4000 to 0.4500
Manufacturers catalog numberSPMT 100408R-HQ-M IC30N
Manufacturer gradeIC30N
Material applicationSteel; Stainless Steel; Hard Material
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Hard Material
RakePositive
Rake angle23
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1670
Thickness range0.1500 to 0.1750
Width0.4016
