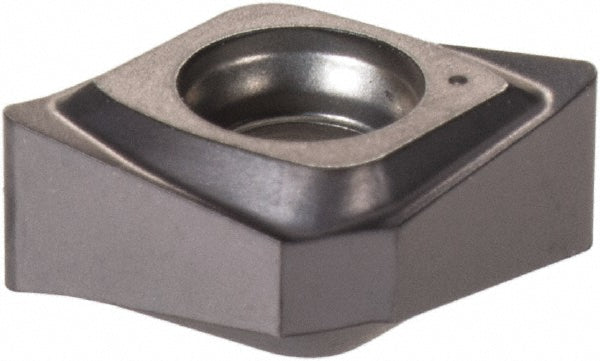

CNHT 070305 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604475

Iscar

CNHT 070305 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604475

MFR# 5604475ISO/ANSI# CNHT 070305Cat# CNHT 070305 IC908Series TORMILL

$20.93List $26.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604475 is a CNHT 070305 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeCNHT 070305 IC908
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityE93CN
Cutting edge effective length0.2559
Cutting edge styleHoned
Included angle degree80
Inscribed circle0.2756
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size07
Insert size code070305
Insert styleCNHT
Iso codeCNHT 070305
Length0.2756
Length range0.0000 to 0.3200
Manufacturers catalog numberCNHT 070305 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1420
Thickness range0.1250 to 0.1500
Width0.2756
