Iscar

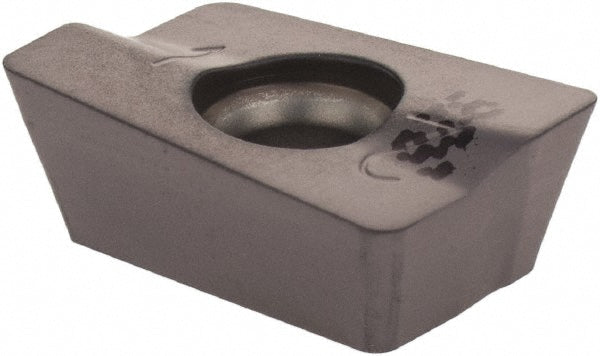

HM90 ADKW 1505PDR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604499
MFR# 5604499ISO/ANSI# HM90 ADKW 1505PDRCat# HM90 ADKW 1505PDR IC928Series HELI2000
$22.25List $28.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604499 is a HM90 ADKW 1505PDR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHM90 ADKW 1505PDR IC928
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.5570
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKW
Iso codeHM90 ADKW 1505PDR
Length0.6360
Length range0.6000 to 0.6500
Manufacturers catalog numberHM90 ADKW 1505PDR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.3780
