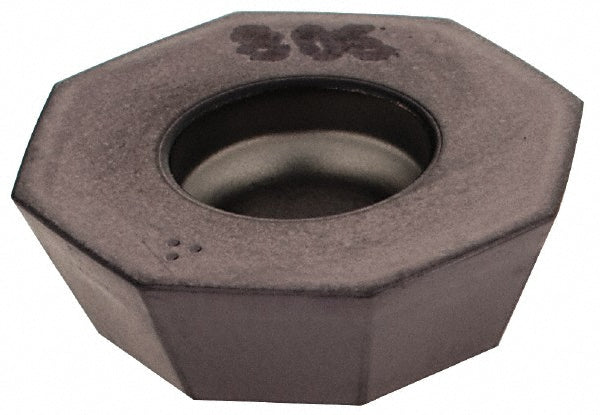

OEMW 060405-AETN Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604506
MFR# 5604506ISO/ANSI# OEMW 060405-AETNCat# OEMW 060405-AETN IC908Series HELIOCTO
$20.45List $26.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604506 is a OEMW 060405-AETN solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeOEMW 060405-AETN IC908
Chip breakerAETN
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.0960
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.5618
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060405
Insert styleOEMW
Iso codeOEMW 060405-AETN
Length0.5618
Length range0.5000 to 0.6000
Manufacturers catalog numberOEMW 060405-AETN IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0960
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5618
