Carbide Insert, Grade IC908, TiAlN - Iscar 5604521

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604521

MFR# 5604521Series MM HCD

$63.33List $81.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

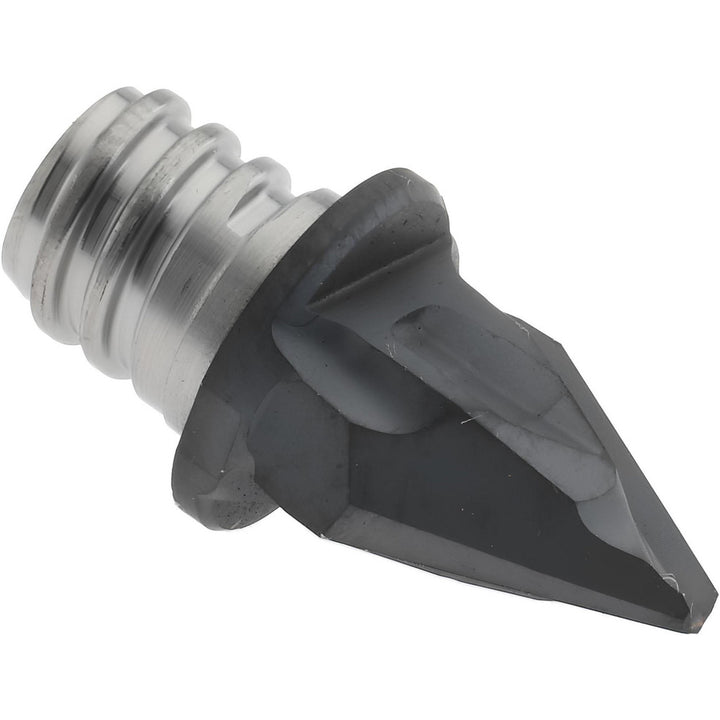

The Iscar 5604521 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle30degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.0591
Cutting width0.0591in
Extension from holder in0.4630
Functional length0.4630
Included angle degree140
Insert handRight Hand
Insert size100-060
Lead angle60
Length of cut0.3664in
Manufacturers catalog number5604521
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2994
Milling tip full descriptionMM HCD100-060-2T06
Milling tip styleMM HCD
Milling tip typeChamfer
Number of flutes2
Overall length0.4630in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
