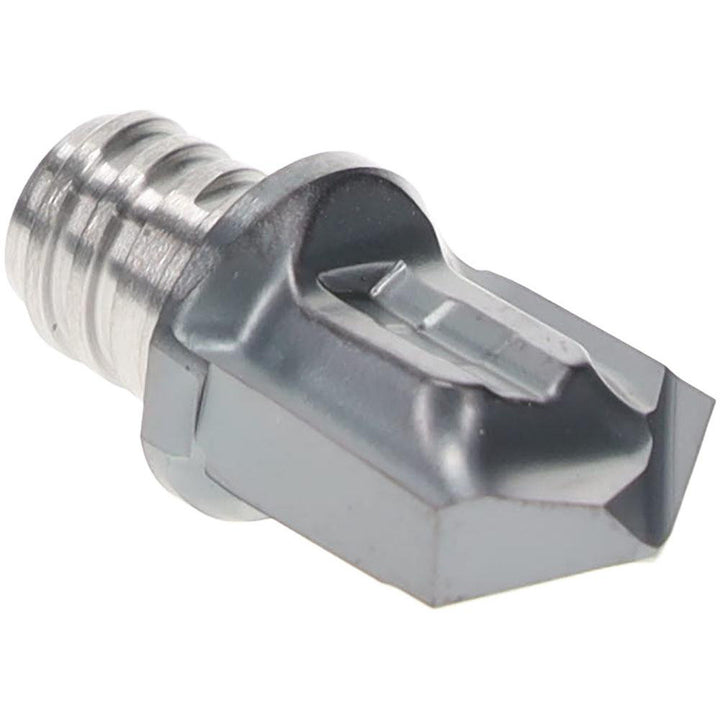

Carbide Insert, Grade IC908, TiAlN - Iscar 5604522

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604522

MFR# 5604522Series MM HCD

$63.33List $81.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604522 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle15degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.0591
Cutting width0.0591in
Extension from holder in0.5000
Functional length0.5004
Included angle degree140
Insert handRight Hand
Insert size100-120
Lead angle30
Length of cut0.3743in
Manufacturers catalog number5604522
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1064
Milling tip full descriptionMM HCD100-120-2T06
Milling tip styleMM HCD
Milling tip typeChamfer
Number of flutes2
Overall length in1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
