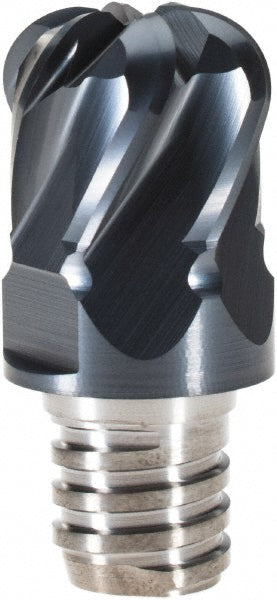

Carbide Insert, Grade IC908, TiAlN - Iscar 5604524

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604524

MFR# 5604524Series MM ETR

$220.67List $282.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

The Iscar 5604524 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2000
Cutting width0.6250in
Extension from holder in0.8070
Functional length0.8070
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.625A35R200
Lead angle90
Length of cut0.3500in
Manufacturers catalog number5604524
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3500
Milling tip full descriptionMM ETR.625A35R200-6T10 90
Milling tip styleMM ETR
Milling tip typeToroidal
Number of flutes6
Overall length0.8070in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
