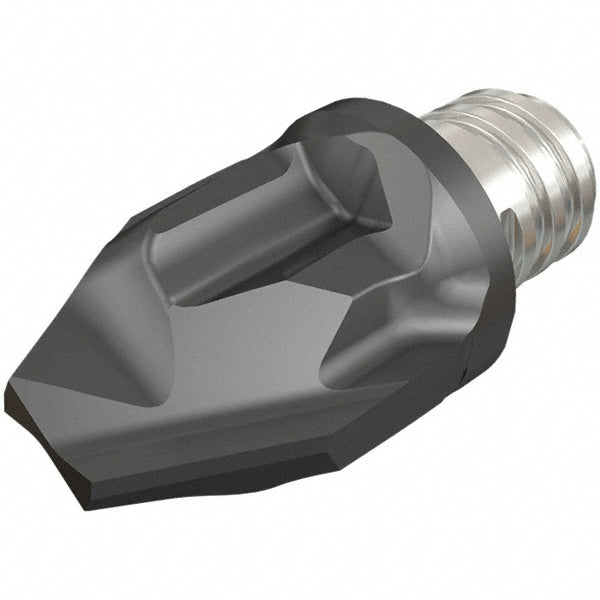

Carbide Insert, Grade IC908, TiAlN - Iscar 5604525

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604525

MFR# 5604525Series MM HCF

$56.61List $72.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604525 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle30
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.1570
Cutting width0.157
Extension from holder in0.3937
Functional length0.3940
Included angle degree60
Insert handRight Hand
Insert size100-060
Lead angle60
Length of cut0.1970
Manufacturers catalog number5604525
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1970
Milling tip full descriptionMM HCF100-060-2T06
Milling tip styleMM HCF
Milling tip typeChamfer
Number of flutes2
Overall length in1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
