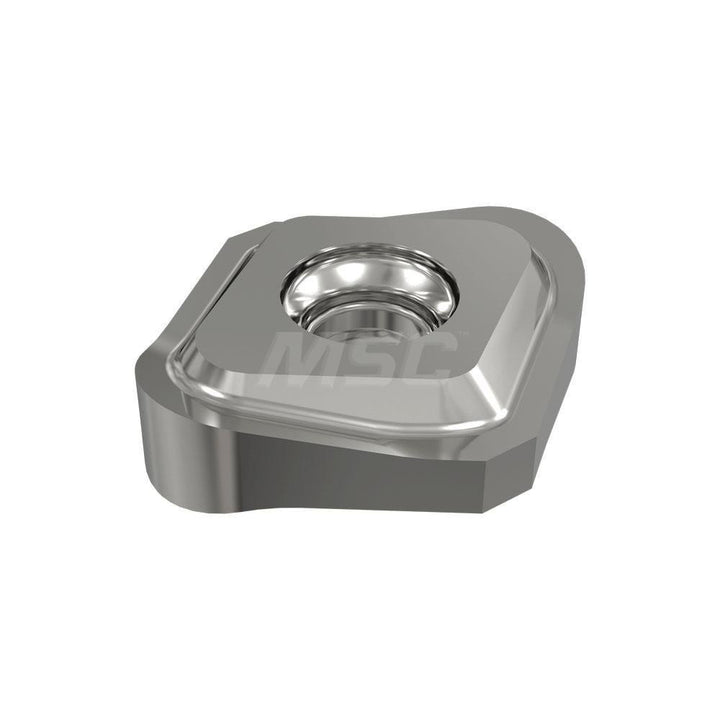

ENHT 100408 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604534

Iscar

ENHT 100408 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604534

MFR# 5604534ISO/ANSI# ENHT 100408Cat# ENHT 100408 IC908Series TORMILL

$24.52List $31.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604534 is a ENHT 100408 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeENHT 100408 IC908
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF93CN
Cutting edge effective length0.3819
Cutting edge styleHoned
Included angle degree75
Inscribed circle0.4134
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size10
Insert size code100408
Insert styleENHT
Iso codeENHT 100408
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberENHT 100408 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3819
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.4134
