QPMR 100404PDN-HQ-M Solid Carbide Insert, Grade IC28 - Iscar 5604546

Iscar

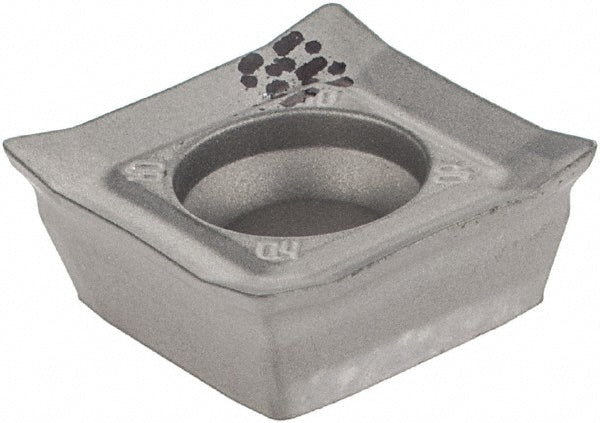

QPMR 100404PDN-HQ-M Solid Carbide Insert, Grade IC28 - Iscar 5604546

MFR# 5604546ISO/ANSI# QPMR 100404PDN-HQ-MCat# QPMR 100404PDN-HQ-M IC28Series QUAD2000

$15.62List $20.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5604546 is a QPMR 100404PDN-HQ-M solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeQPMR 100404PDN-HQ-M IC28
Chip breakerHQ
Coating processUncoated
Corner radius in1/64
Cutter series compatibilitySPK; F90SP; E90SP
Cutting edge effective length0.3918
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4070
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100404
Insert styleQPMR
Iso codeQPMR 100404PDN-HQ-M
Length0.4075
Length range0.4000 to 0.4500
Manufacturers catalog numberQPMR 100404PDN-HQ-M IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.3918
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1760
Thickness range0.1750 to 0.1850
Width0.4070
