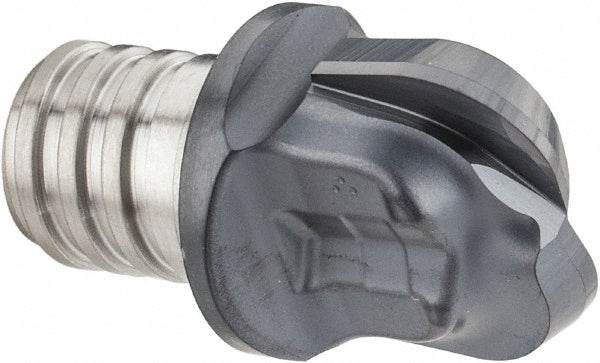

Carbide Insert, Grade IC908, TiAlN - Iscar 5604566

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604566

MFR# 5604566Series MM HT

$143.28List $183.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604566 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2500
Cutting width0.7500in
Extension from holder in0.6800
Functional length0.6800
Included angle degree83
Insert handRight Hand
Insert size.750N45R250
Lead angle97
Length of cut0.4500in
Manufacturers catalog number5604566
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4500
Milling tip full descriptionMM HT.750N45R250-2T12
Milling tip styleMM HT
Milling tip typeToroidal
Number of flutes2
Overall length0.6800in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
