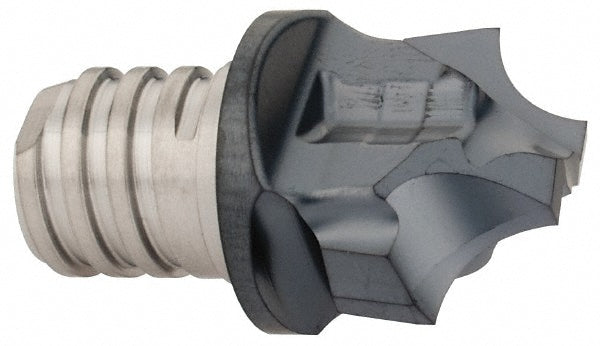

Carbide Insert, Grade IC908, TiAlN - Iscar 5604567

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604567

MFR# 5604567Series MM HR

$171.94List $220.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604567 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2364
Cutting diameter0.3152
Cutting width0.3152in
Extension from holder in0.6850
Functional length0.6856
Included angle degree90
Insert handRight Hand
Insert size6.0/236-8.0
Lead angle90
Length of cut0.2758in
Manufacturers catalog number5604567
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2758
Milling tip full descriptionMM HR6.0/236-8.0-2T12
Milling tip styleMM HR
Milling tip typeCorner Rounding
Number of flutes2
Overall length0.6856in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
