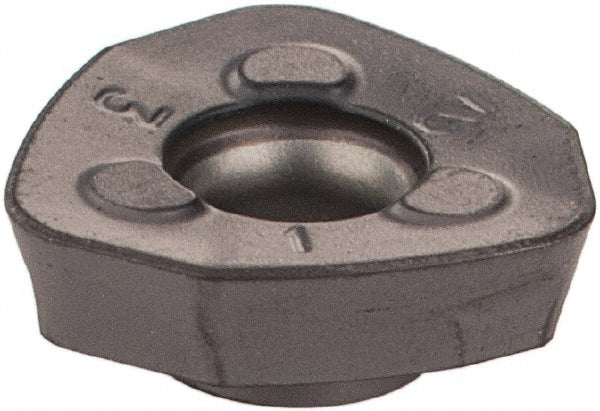

FF WOMT 060212T-M Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604584

MFR# 5604584ISO/ANSI# FF WOMT 060212T-MCat# FF WOMT 060212T-M IC908Series FEEDMILL

$18.43List $23.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604584 is a FF WOMT 060212T-M solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeFF WOMT 060212T-M IC908
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityFF FW; FF EW
Cutting edge effective length0.2756
Cutting edge styleHigh Feed Rate
Included angle degree80
Inscribed circle0.3882
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size06
Insert size code060212
Insert styleWOMT
Iso codeFF WOMT 060212T-M
Length0.3882
Length range0.3200 to 0.4000
Manufacturers catalog numberFF WOMT 060212T-M IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0470
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1060
Thickness range0.1000 to 0.1250
Width0.3882
