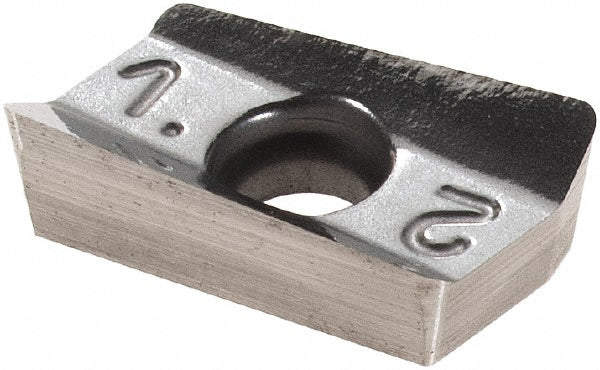

HP ANCR 070204PNFR-P Solid Carbide Insert, Grade IC28 - Iscar 5604595

Iscar

HP ANCR 070204PNFR-P Solid Carbide Insert, Grade IC28 - Iscar 5604595

MFR# 5604595ISO/ANSI# HP ANCR 070204PNFR-PCat# HP ANCR 070204PNFR-P IC28Series HELIPLUS

$19.91List $25.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5604595 is a HP ANCR 070204PNFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHP ANCR 070204PNFR-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityHP-ANK-07; HP .90-07
Cutting edge effective length0.3030
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070204
Insert styleANCR
Iso codeHP ANCR 070204PNFR-P
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANCR 070204PNFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle34
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
