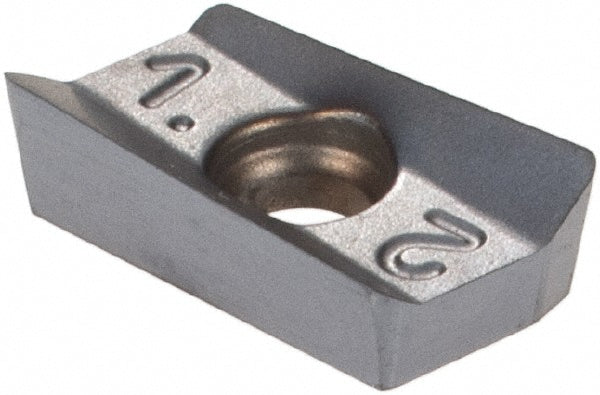

HP ANCR 070204PNFR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604597

Iscar

HP ANCR 070204PNFR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604597

MFR# 5604597ISO/ANSI# HP ANCR 070204PNFRCat# HP ANCR 070204PNFR IC328Series HELIPLUS

$21.31List $27.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5604597 is a HP ANCR 070204PNFR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHP ANCR 070204PNFR IC328
Chip breakerPNFR
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHP-ANK-07; HP .90-07
Cutting edge effective length0.3030
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070204
Insert styleANCR
Iso codeHP ANCR 070204PNFR
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANCR 070204PNFR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
