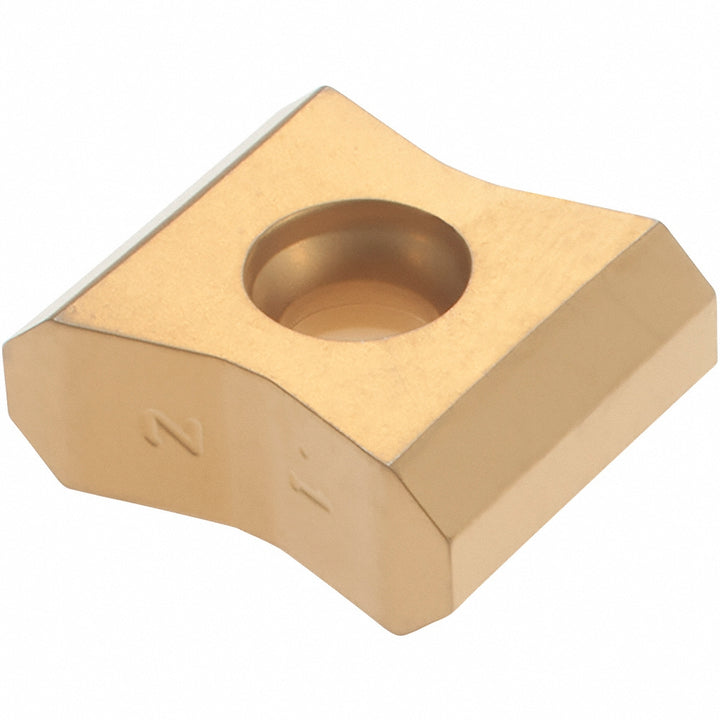

LNMW 150608 ANTN Solid Carbide Insert, Grade IC4100, TiCN - Iscar 5604644

Iscar

LNMW 150608 ANTN Solid Carbide Insert, Grade IC4100, TiCN - Iscar 5604644

MFR# 5604644ISO/ANSI# LNMW 150608 ANTNCat# LNMW 150608 ANTN IC4100Series TANGMILL

$23.50List $30.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC4100
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5604644 is a LNMW 150608 ANTN solid carbide indexable insert, grade IC4100, TiCN coated. Suited for cast iron, hard material.

Specifications

Ansi codeLNMW 150608 ANTN IC4100
Chip breakerFlat Top
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityF45LN
Cutting edge effective length0.6024
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code150608
Insert styleLNMW
Iso codeLNMW 150608 ANTN
Length0.6024
Length range0.6000 to 0.6500
Manufacturers catalog numberLNMW 150608 ANTN IC4100
Manufacturer gradeIC4100
Material applicationCast Iron; Hard Material
Maximum depth of cut0.2950
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5080
Thickness range0.5000+
Width0.2360
