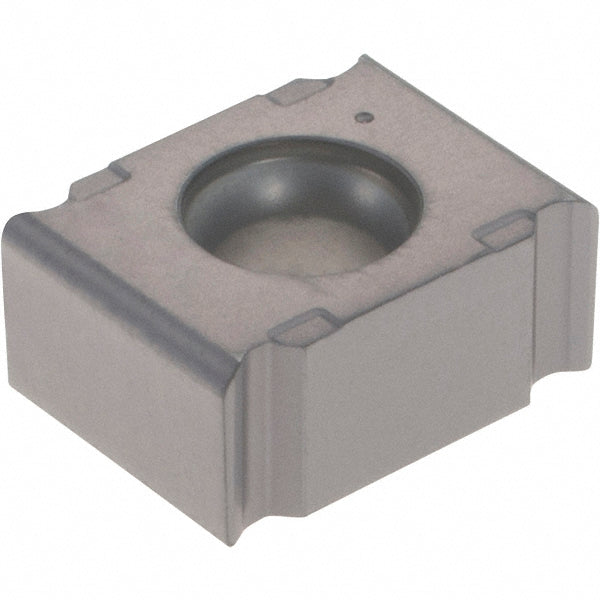

LNET 125508-TN-MM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604646

Iscar

LNET 125508-TN-MM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604646

MFR# 5604646ISO/ANSI# LNET 125508-TN-MMCat# LNET 125508-TN-MM IC928Series TANGSLOT

$24.91List $31.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeButterfly
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604646 is a LNET 125508-TN-MM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNET 125508-TN-MM IC928
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size12
Insert size code125508
Insert styleLNET
Iso codeLNET 125508-TN-MM
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNET 125508-TN-MM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle25
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/8
Thickness range0.3500 to 0.5000
Width in1/2
