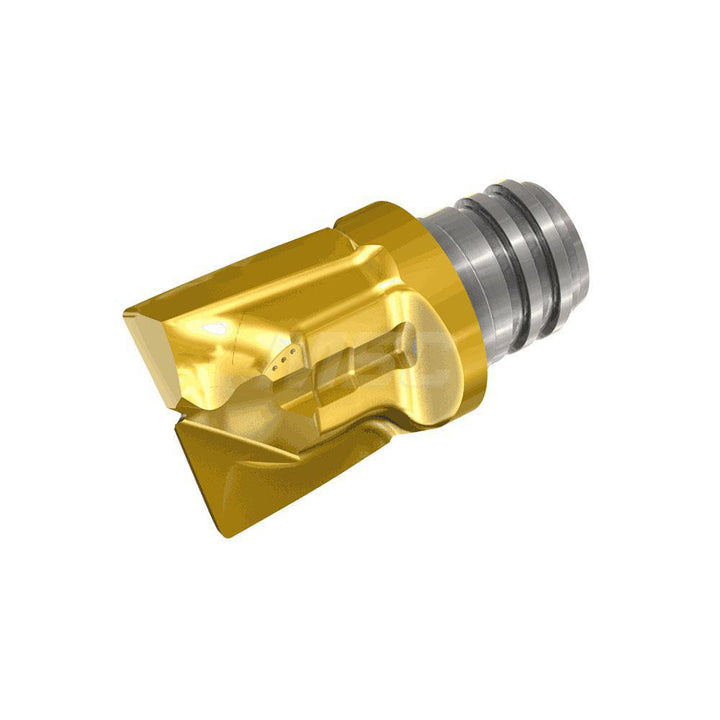

Carbide Insert, Grade IC908, TiAlN - Iscar 5604651

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5604651

MFR# 5604651Series MM HC

$66.22List $84.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5604651 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0788
Cutting diameter0.4728
Cutting width0.4728
Extension from holder in0.5600
Functional length0.5595
Helix angle10
Included angle degree90
Insert handRight Hand
Insert size120C13R2.0
Lead angle90
Length of cut0.3940
Manufacturers catalog number5604651
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3940
Milling tip full descriptionMM HC120C13R2.0-2T08
Milling tip styleMM HC
Milling tip typeSlotting Drill
Number of flutes2
Overall length0.5595
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
